Project Description

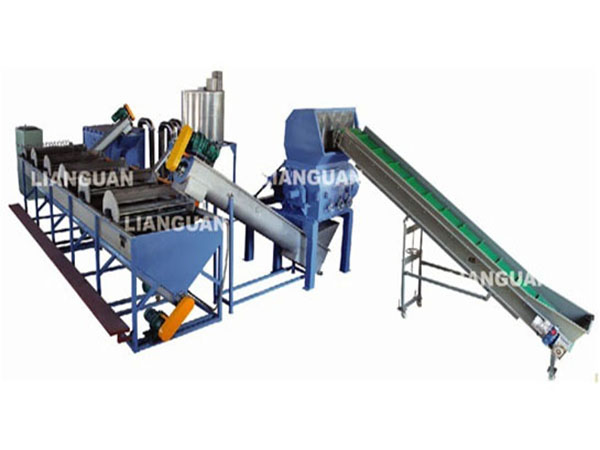

PE/PP Washing Line
It is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete crushing and washing line, clients can make dry, clean film scraps from wasted material. The whole washing line could be “L” or “U” shape according clients’ workshop.

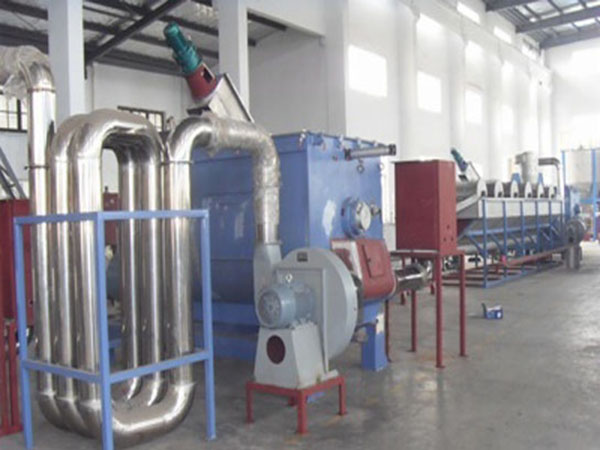

The working flow of this film washing line is: belt conveyer → crusher → friction washer → float washer→dewatering/film squeezer/film densifier → dryer → silo. If the film is very dirty, some clients may add steam/hot washer for this washing line.
Main Machine Specification：
| capacity | 300kg/h | 500kg/h | 1000kg/h |

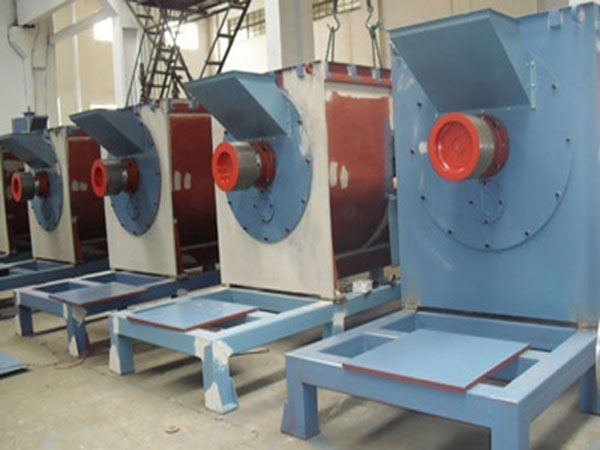

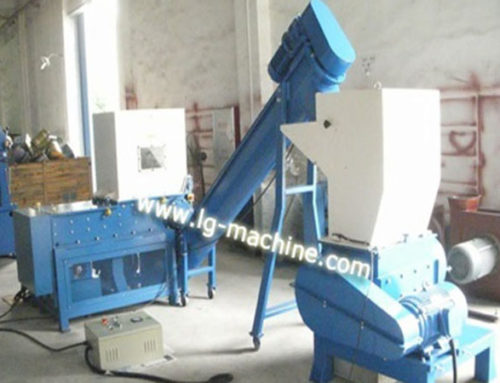

| Crusher motor(kw) | 22-37 | 45-55 | 75-90 |
| Screen hole size(mm) | Φ60-70 | Φ60-70 | Φ60-70 |
| Drying power(kw) | 28 | 36 | 48 |
| Final humidity | Less than 5% | Less than 5% | Less than 5% |
| Total power(kw) | 100 | 150 | 210 |
| Total length(m) | 20-25 | 25-30 | 30-40 |
| Area(m2) | 150 | 200 | 250 |
